TR-541a TLC Scanner
for Densitometric Evalution of Thin-Layer Chromatograms
Data sheet in PDF format - english version
Data sheets page by page in graphic format:
1
2
3
4

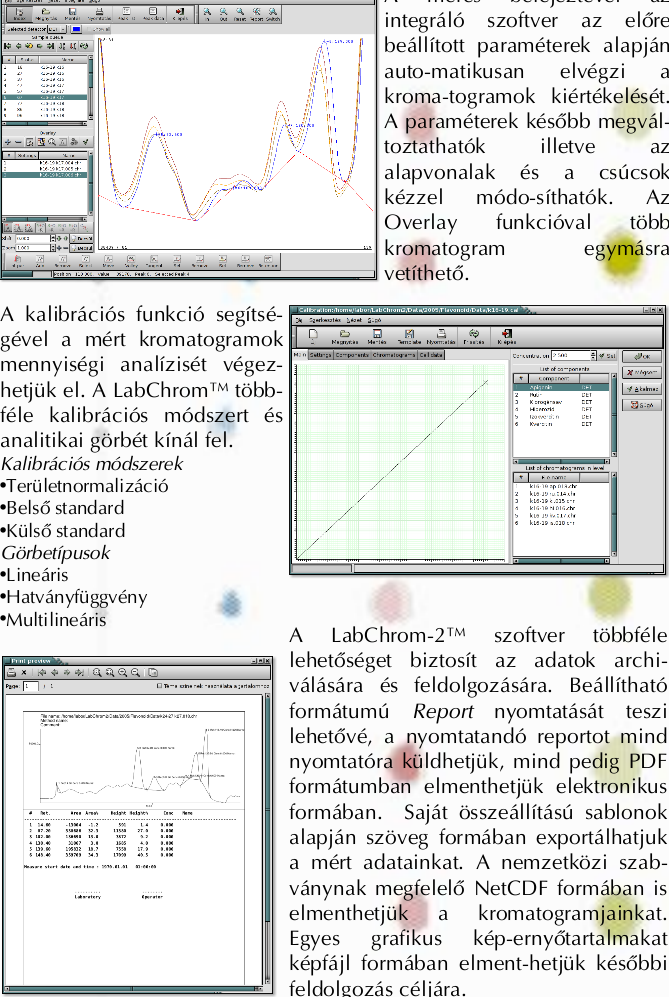

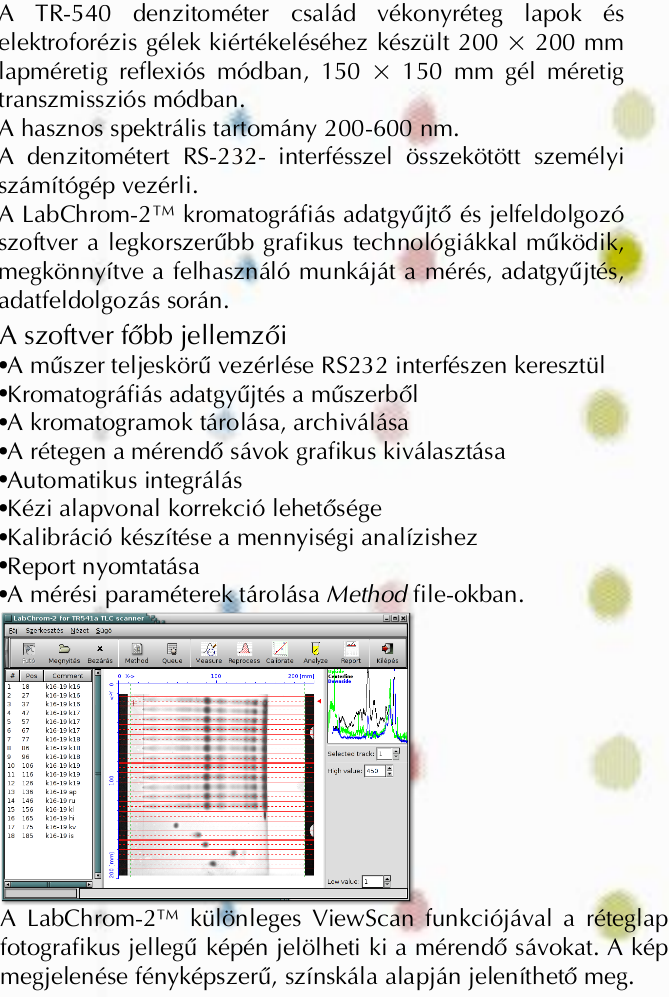

Data sheet in PDF format - hungarian (magyar) version
Data sheets page by page in graphic format:
1
2
3
4

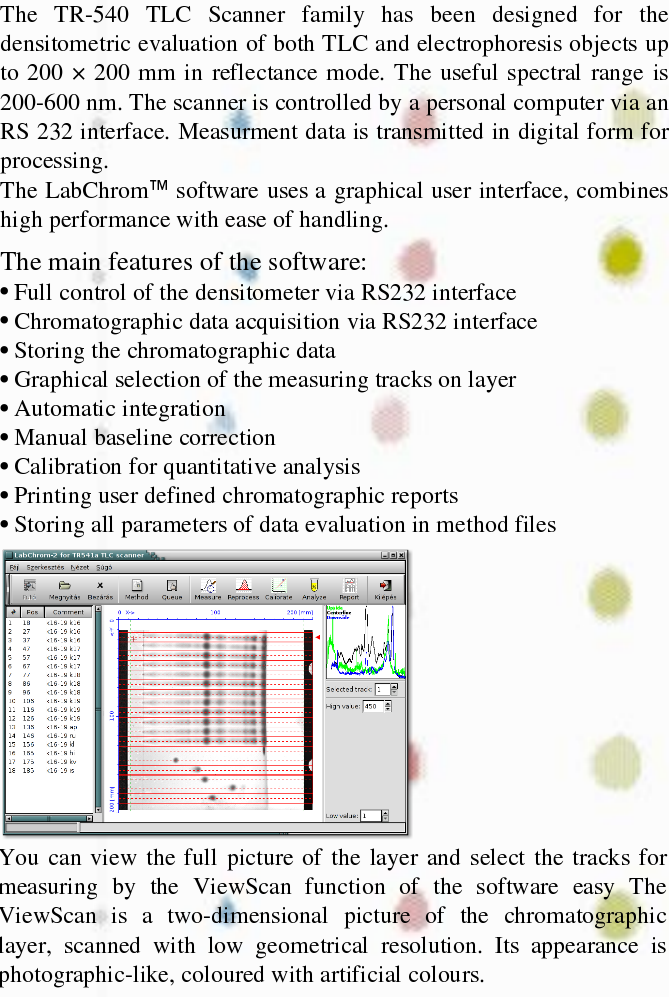

The TR-540 TLC Scanner has been designed for the densitometric evaluation of both TLC and electrophoresis objects up to 200 × 200 mm in reflectance mode. The useful spectral range is 200-600 nm.
The scanner is controlled by a personal computer via an RS 232 interface. Measurment data is transmitted in digital form for processing.
The LabChrom(tm) software uses a graphical user interface, combines high performance with ease of handling.
The main features of the software:
- Full control of the densitometer via RS232 interface
- Chromatographic data acquisition via RS232 interface
- Storing the chromatographic data
- Graphical selection of the measuring tracks on layer
- Automatic integration
- Manual baseline correction
- Calibration for quantitative analysis
- Printing user defined chromatographic reports
- Storing all parameters of data evaluation in method files

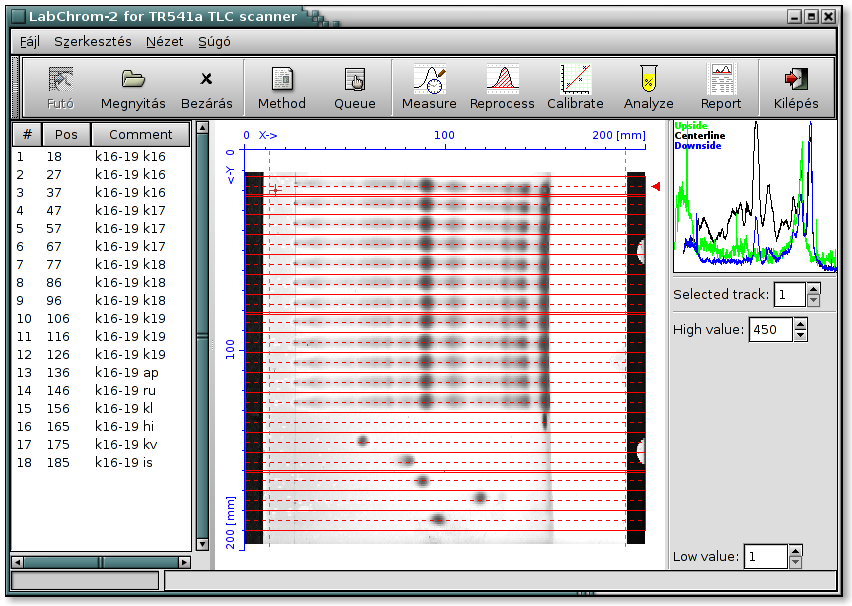

You can view the full picture of the layer and select the tracks for measuring by the ViewScan function of the software easy
The ViewScan is a two-dimensional picture of the chromatographic layer, scanned with low geometrical resolution. Its appearance is photographic-like, coloured with artificial colours.

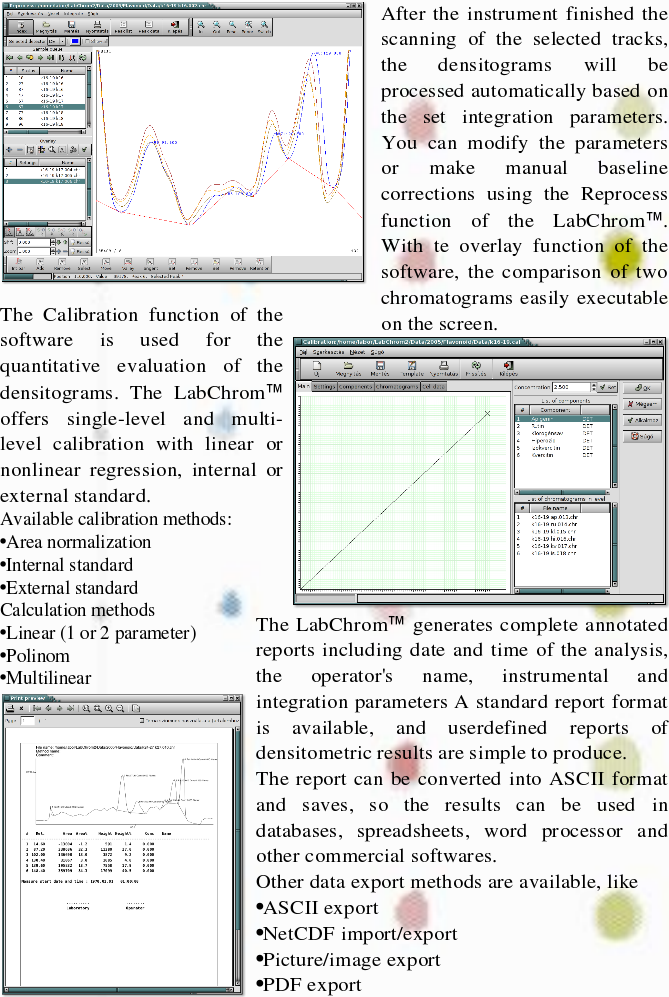

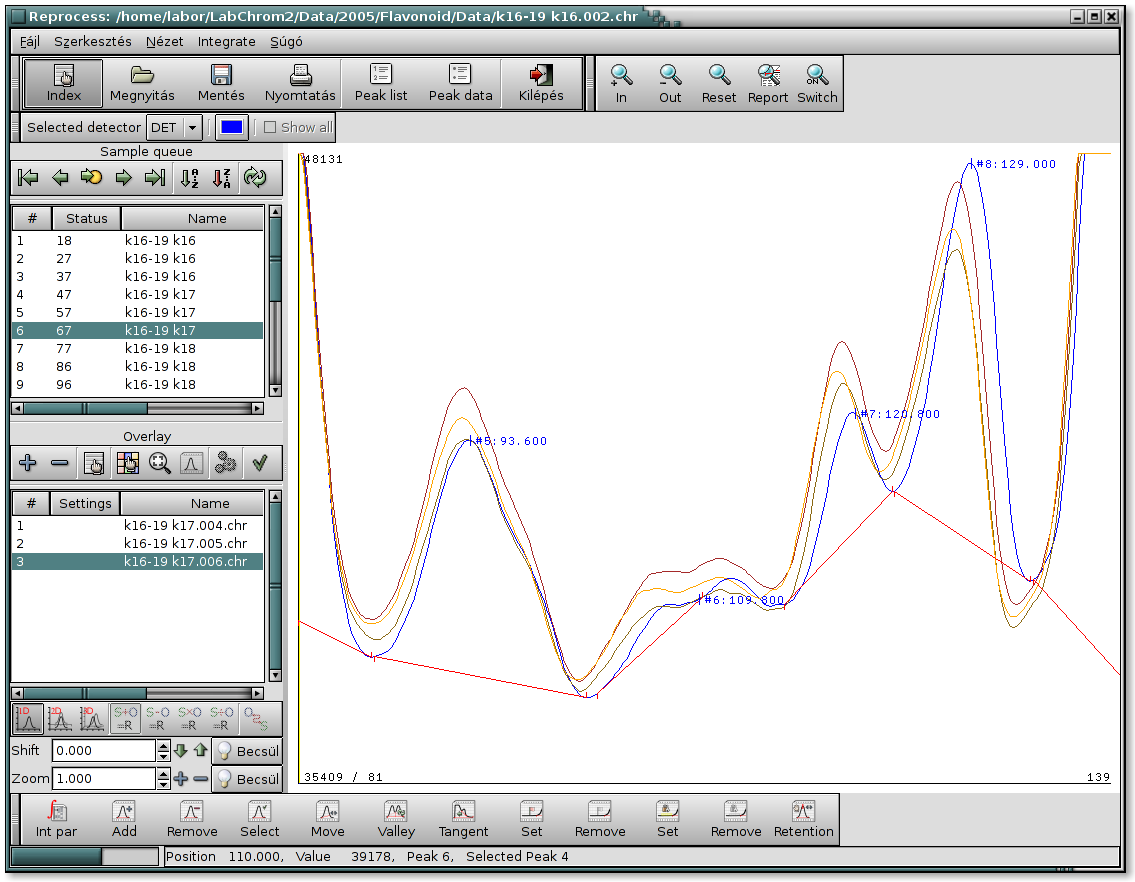

After the densitometer finished the scanning of the selected tracks, the densitograms will be processed automatically based on the set integration parameters. You can modify the parameters or make manual baseline corrections using the Reprocess function of the LabChrom(tm).

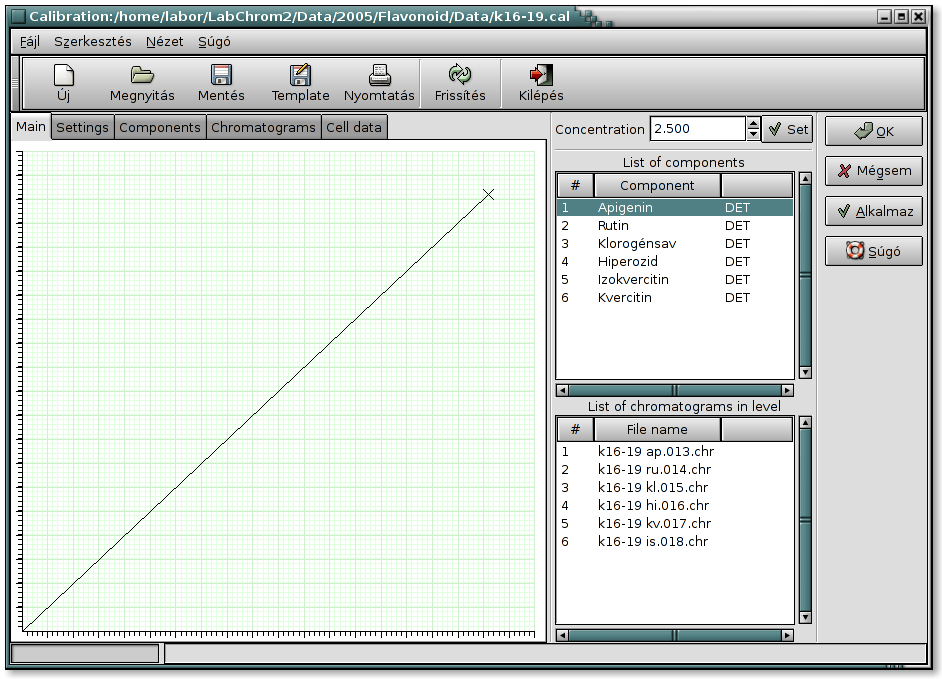

The Calibration function of the software is used for the quantitative evaluation of the densitograms. The LabChrom(tm) offers single-level and multi-level calibration with linear or nonlinear regression, internal or external standard.
Available calibration methods:
- Area normalization
- Internal standard
- External standard
- External standard w/internal standard

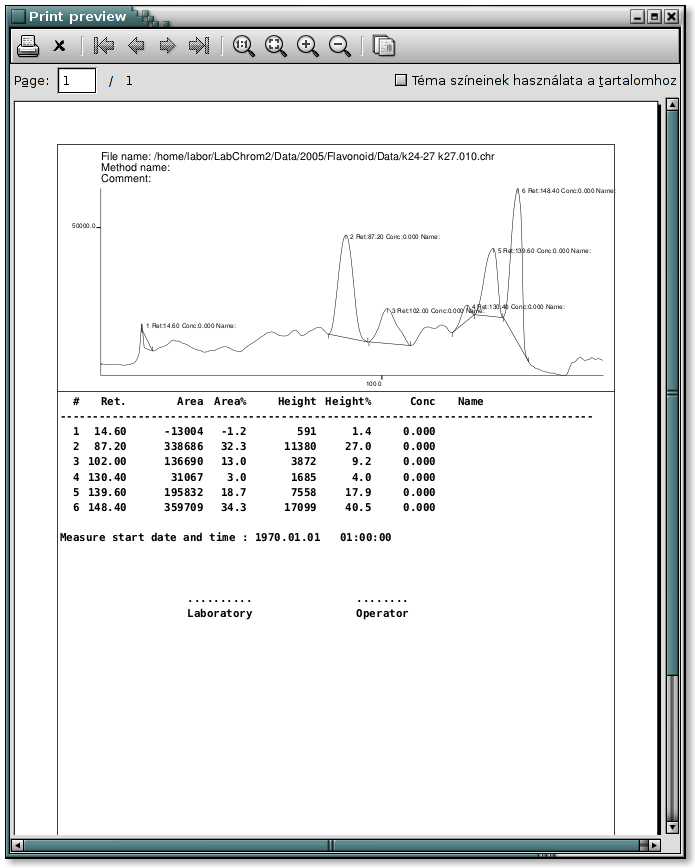

The LabChrom(tm) generates complete annotated reports including date and time of the analysis, the operator's name, instrumental and integration parameters A standard report format is available, and userdefined reports of densitometric results are simple to produce. The report can be converted into ASCII format and saves, so the results can be used in databases, spreadsheets, word processor and other commercial softwares.
SPECIFICATION
Physical Specification
Electrical
- Line Voltage: 220 VAC
- Line Voltage Tolarence: ñ10%
- Frequency Range: 48-66 Hz
- Power Consumption: 500 VA
Mechanical
- Dimensions: 630 ' 470 ' 245 mm (W'D'H)
- Net Weight: 45 kg
Environmental
- Temperature Range (operating): +10...+35 øC
- Temperature Range (storage): 0...+55 øC
- Humidity Range (operating): 10...90% (noncondensing)
Scannig
- Stage: 20 ' 20 cm
- Scanning slit:
- In scanning direction (in X-direction): 0.2 mm
- scanning direction(in Y-direction): 1 mm
- Scanning speed: 1 line (in X-direction) / 10 sec
Optical System
- Light source: Osram XBO 75 W/2 xenon lamp (75 W)
- Detector: Hamamatsu R1547 photomultiplier
Interference filters:
- 1)Wavelength: 606 nm; half width at half height: 10 nm
- 2)(neutral filter)
- 3)Wavelength: 208 nm; half width at half height: 27 nm
- 4)Wavelength: 254 nm; half width at half height: 28 nm
- 5)Wavelength: 280 nm; half width at half height: 11 nm
- 6)Wavelength: 436 nm; half width at half height: 8 nm
- 7)Wavelength: 539 nm; half width at half height: 10 nm
Data Acquisition
A/D converter:
- Conversion type: S/D converter
- Sampling rate: 1 kHz
- Resolution: 12-14 bit
- Interface: fully optically isolated RS 232 interface
Minimum computer configuration
- P-III processor
- 256 MB RAM
- VGA monitor
- mouse
- GNU/Linux operating system, Gnome-2 desktop environment
- CUPS compatible printer, practically any (see linuxprinting.org)
